PVC — IGLO Series
IGLO 5
The workhorse of the IGLO PVC line. 5-chamber Class A profile, 70 mm build depth, Uw = 0.89 W/(m²K). Made entirely from primary PVC material. The right call when the project doesn’t need 7-chamber thermal but the spec still needs to be a serious European window.
- 0.89 W/(m²K) Uw
- Class A Profile (EN 12608)
- 5 Chambers
- 70 mm Build depth
- MACO MULTI-MATIC Hardware
- Ug 1.1 Double-pane glazing
Why spec this one
IGLO 5 is the model most multi-family and standard residential projects actually need.
Three reasons to pick this over the 7-chamber options:
- Cost. Lower per-unit price than IGLO EDGE or ENERGY. When the unit count is high, the savings stack.
- Spec sufficiency. Uw = 0.89 W/(m²K) meets New Jersey energy code without modification. Triple-pane glazing upgrade hits Uw values appropriate for most code-driven new construction in the Northeast.
- Reliability. Class A profile, MACO MULTI-MATIC KS hardware, EPDM perimeter sealing. Same hardware platform as the rest of the IGLO line. No corner-cutting on the operating components.
If the project is multi-family with a high unit count, standard residential where Uw < 0.7 isn’t required by code, or an ADU build where budget discipline matters, this is the model.
Standard equipment
- MACO MULTI-MATIC KS hardware with 2 anti-burglary engagement points and Silber-Look anti-corrosion coating
- Sash lifter (sash position blocker, dependent on window height)
- Microventilation on tilt-turn sashes
- Hinge covers in 4 colors (white, silver, light brown, brown)
- Aluminum window handle
- Double-pane argon-filled IGU at Ug = 1.1 W/(m²K)
- Galvanized steel spacer (Swisspacer Ultimate warm-edge available as upgrade)
- 2 EPDM perimeter seals in black (interior and exterior)
- Hardware groove sealing
- 1.5 mm U-channel steel frame and sash reinforcement (2 mm for balcony door sash)
- White PVC core
- 5-chamber PVC sub-sill profile with seal
Performance specs
| Thermal transmittance (Uw) | 0.89 W/(m²K) |
|---|---|
| Profile class (EN 12608) | A |
| Frame chambers | 5 |
| Build depth | 70 mm |
| EPDM seals | 2 (interior and exterior perimeter) |
| Glazing (standard) | Double-pane single-chamber, Ug = 1.1 W/(m²K), argon-filled |
| Spacer | Galvanized steel or Swisspacer Ultimate warm-edge upgrade |
| Acoustic insulation | 36 to 44 dB depending on glazing |
| Anti-pry engagement points | 2 (with MACO MULTI-MATIC KS) |
| Steel reinforcement | 1.5 mm U-channel in frame and sash (2 mm in balcony door sash) |
Full technical detail
IGLO 5 is a 5-chamber Class A PVC tilt-turn window system at 70 mm build depth, manufactured exclusively from primary PVC material (no recycled core) with embedded steel reinforcement. Class A designation per EN 12608 requires outer wall thickness of at least 3.0 mm, which IGLO 5 meets across all profile elements.
Thermal performance of Uw = 0.89 W/(m²K) is achieved with the standard double-pane argon-filled IGU at Ug = 1.1 W/(m²K) and the galvanized steel inter-pane spacer. Upgrading to the triple-pane double-chamber IGU at Ug = 0.5 W/(m²K) and the Swisspacer Ultimate warm-edge spacer reduces the Uw to approximately 0.72 W/(m²K), bringing the system into the 7-chamber thermal performance range without changing the frame geometry.
Hardware is MACO MULTI-MATIC KS with Silber-Look anti-corrosion coating, 2 anti-burglary engagement points as standard (the differentiator from the 4-point hardware on the premium 7-chamber line), and a sash lifter that prevents incorrect handle position. Microventilation is included on tilt-turn sashes. Hinge covers ship in four colors (white, silver, light brown, brown).
Steel reinforcement is 1.5 mm galvanized U-channel in both frame and sash, increased to 2 mm in balcony door sash applications. EPDM gasket sealing uses two perimeter seals (interior and exterior) in black; the central gasket present on the 7-chamber IGLO ENERGY family is not part of the IGLO 5 specification. The two-gasket system provides adequate sealing for most residential and light commercial applications in the Northeast US climate.
Standard PVC color is white with matching core; brown is the second factory-standard option. Three-color factory standard (including anthracite) requires the IGLO 5 CLASSIC variant on the same 5-chamber platform. Operation types include tilt-turn, fixed, tilt-only, side-hung, top-hung, and balcony door (full-height tilt-turn with reinforced sash); custom geometric shapes are supported.
Acoustic insulation ranges from 36 dB to 44 dB depending on the glazing package. Application range is residential new build and replacement, multi-family, accessory dwelling units, and light commercial fit-outs across the Northeast US climate envelope. NFRC-equivalent thermal data, wind load ratings, and water tightness ratings are available for code compliance submission.
Colour range
Pick a foil finish — the preview updates live.
Selected finish:
Where it fits
Spec it for
- Multi-family residential where unit count drives per-window cost discipline
- Standard single-family new build where code Uw target is met without going to 7-chamber
- ADU and accessory building primary glazing
- Replacement work on standard residential with single-pane or low-grade double-pane windows
- Commercial fit-outs requiring European-spec tilt-turn at workhorse pricing
Don't spec it for
- High-performance or passive house residential (use IGLO EDGE)
- Premium residential where the cost difference to IGLO 5 CLASSIC is negligible and three-color is preferred
- Concealed-hardware aesthetic requirements (use IGLO EXT or IGLO PREMIER)
- Acoustic-driven projects above 44 dB (use IGLO EDGE for the 47 dB rating)
Within the line
IGLO 5 is the entry point to the IGLO line at the 5-chamber tier. IGLO 5 CLASSIC adds color flexibility on the same platform.
| Model | Uw / Ud | Chambers | Depth | Notes |
|---|---|---|---|---|
| IGLO EDGE | 0.66 | 7 | 82 mm | 3 seals · white, brown, anthracite |
| IGLO ENERGY | 0.71 | 7 | 82 mm | 3 seals · white, brown |
| IGLO ENERGY CLASSIC | 0.73 | 7 | 82 mm | 3 seals · +anthracite |
| IGLO ENERGY ALUCOVER | 0.76 | 7 | 93 mm | RAL aluminum exterior |
| IGLO 5 This model | 0.89 | 5 | 70 mm | 2 seals · white, brown |
| IGLO 5 CLASSIC | 0.83 | 5 | 70 mm | 2 seals · +anthracite |
| IGLO LIGHT | 0.88 | 5 | 70 mm | 2 seals · white, brown |
Lead time and process
Quote in 5 business days. Lead times typically run 8 to 12 weeks from order confirmation.
Inspirations

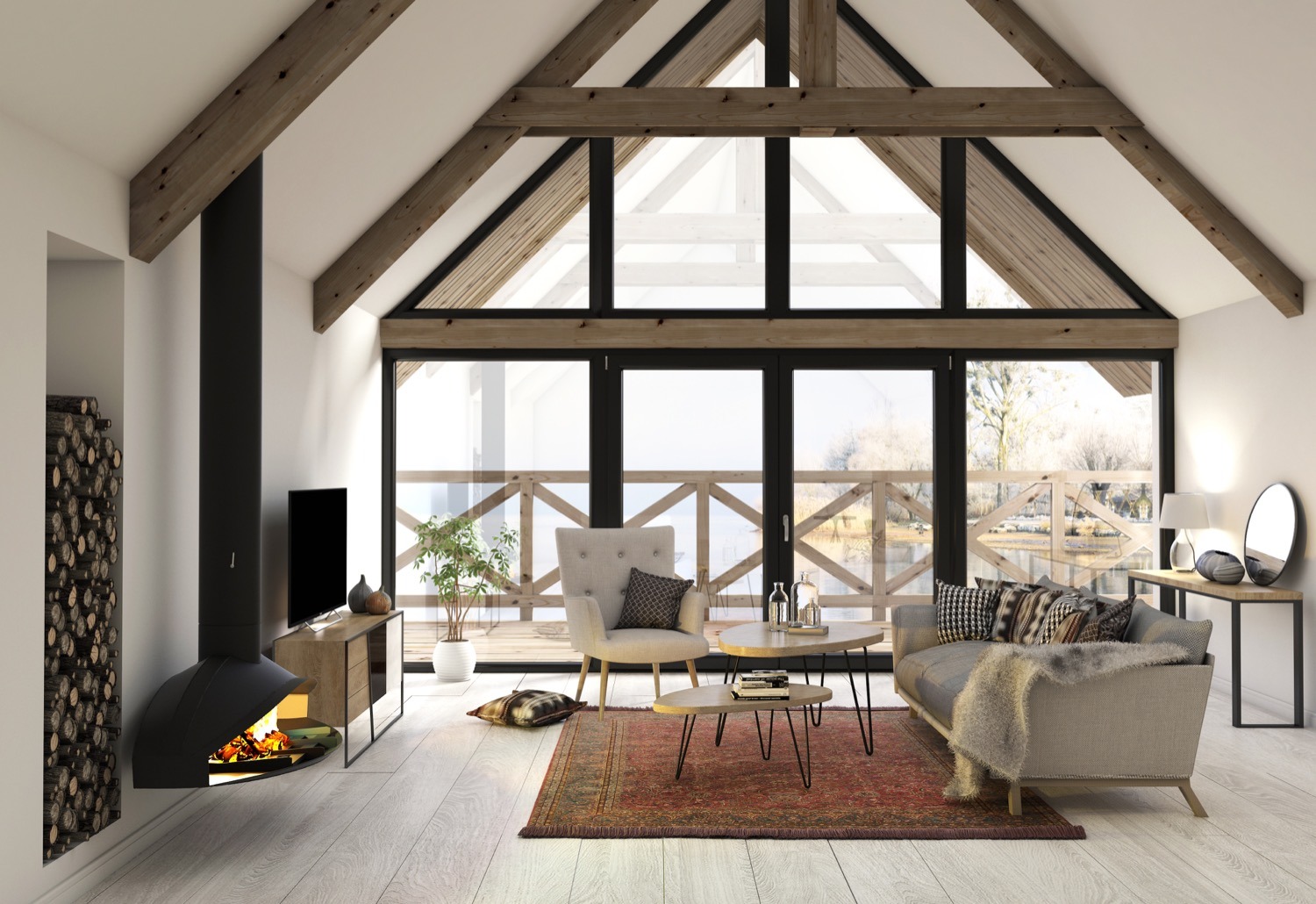

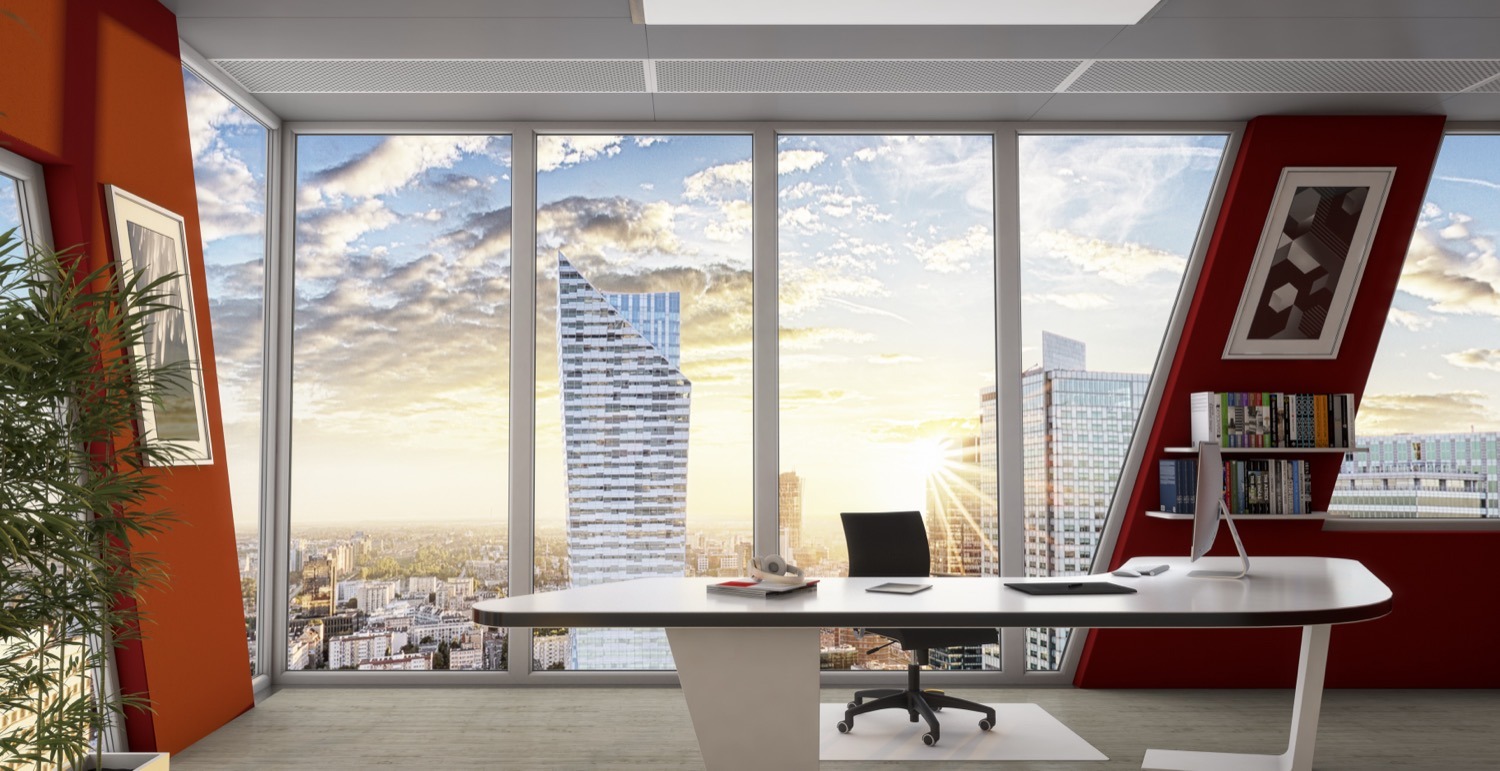

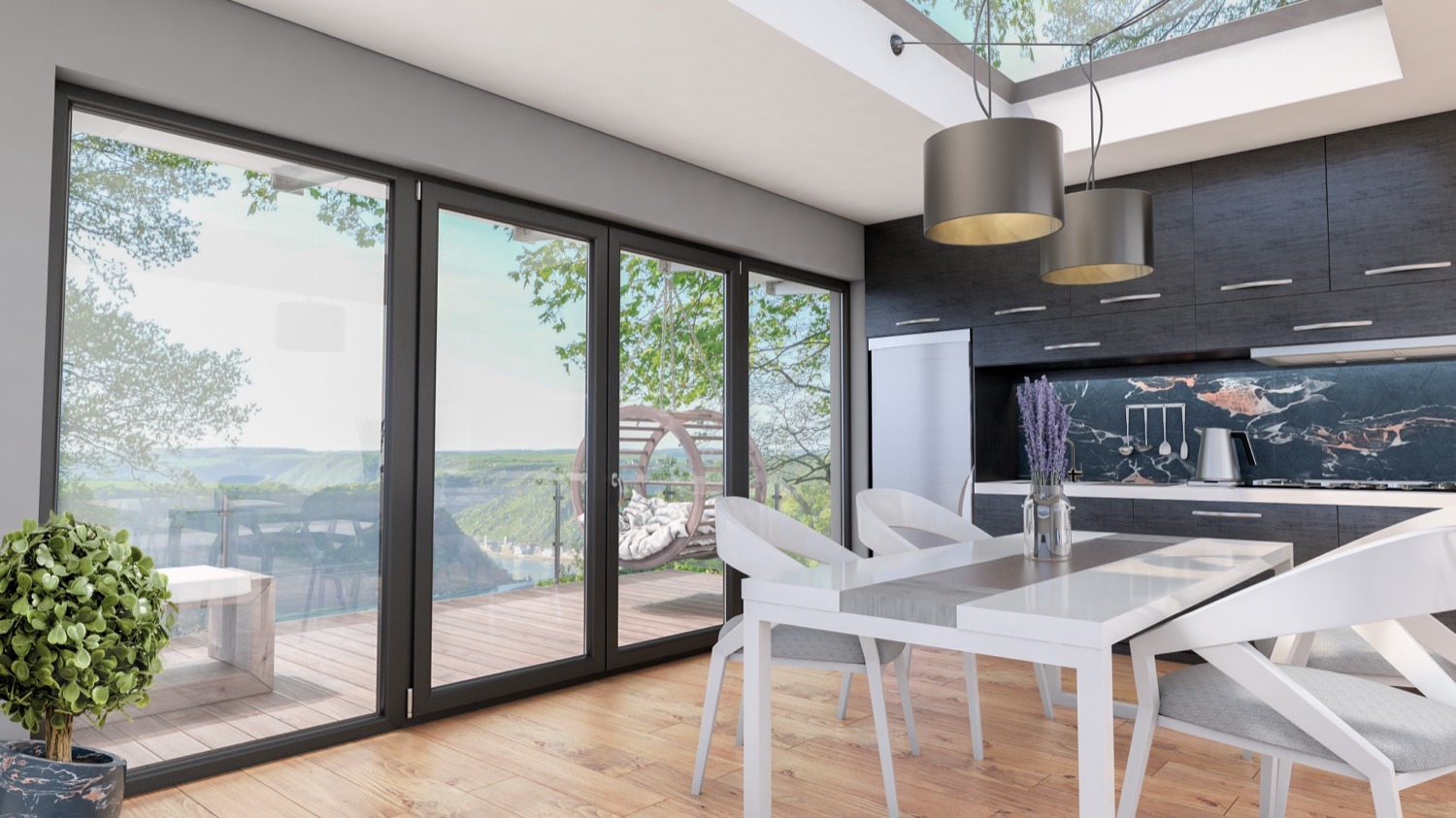

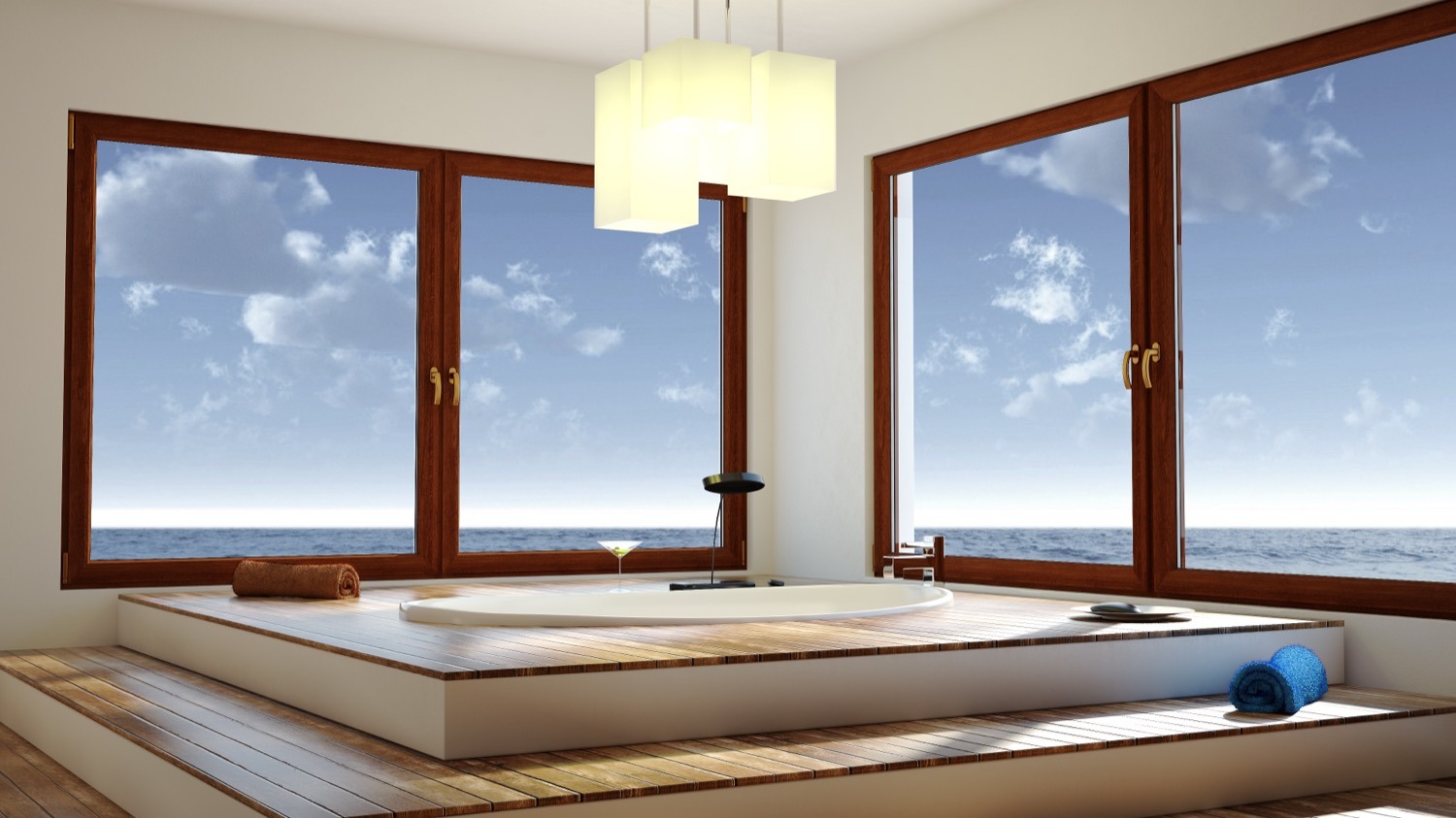

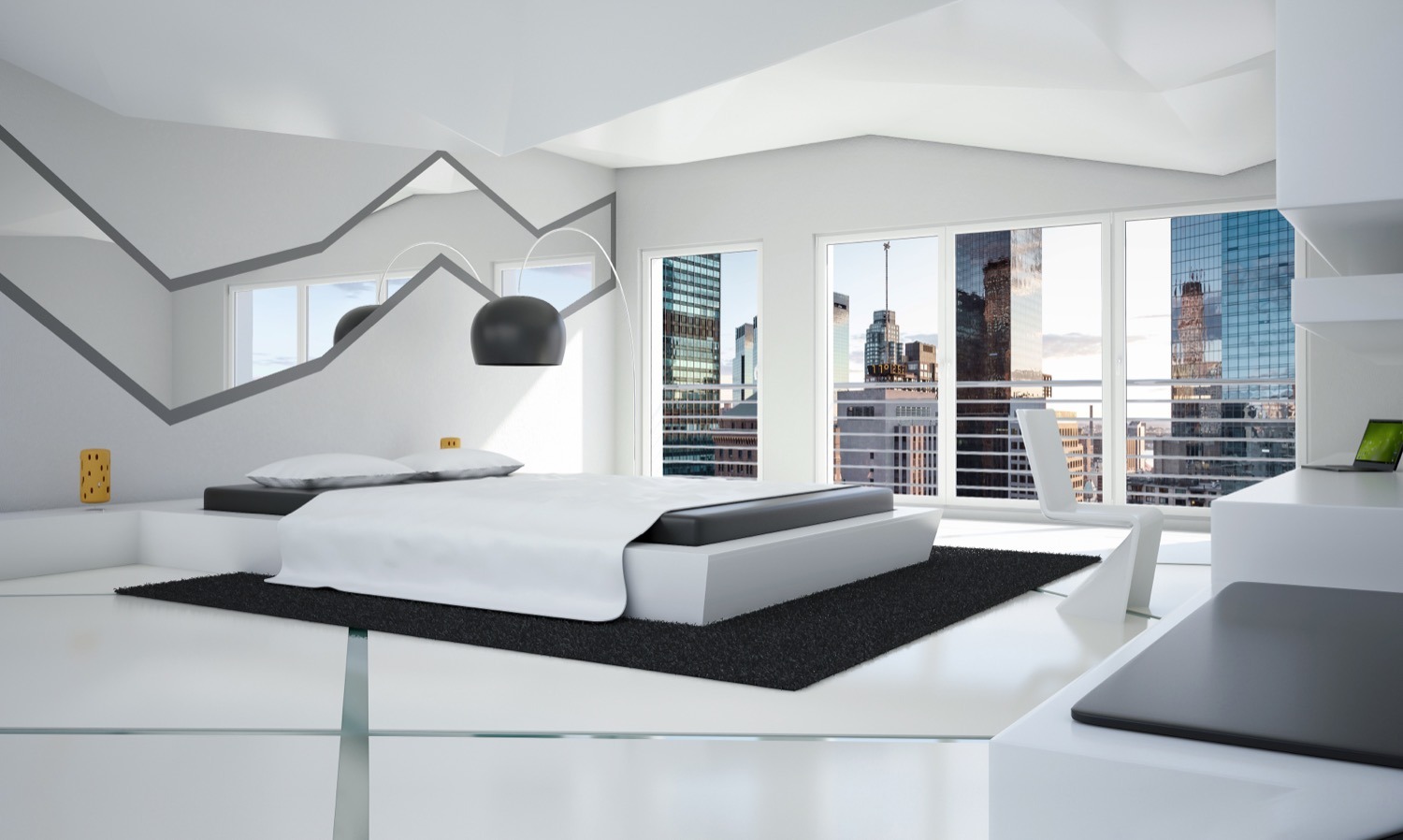

IGLO 5 windows in real homes across the Northeast.
Ready to Price an IGLO 5 Package?
Send drawings or a window schedule. For multi-family, send the unit count and the typical opening sizes. We respond in 1 business day.
