PVC — IGLO Series
IGLO ENERGY
The 7-chamber Class A window with the foamed-EPDM central gasket. First system in the world to use that sealing technology. Uw = 0.71 W/(m²K). Top wind and water tightness ratings in the residential PVC category.
- 0.71 W/(m²K) Uw
- Class A Profile (EN 12608)
- 7 Chambers
- 82 mm Build depth
- Foamed EPDM Central gasket
- Ug 0.5 Triple-pane glazing
Why spec this one
IGLO ENERGY exists for projects where the binding constraint isn’t pure Uw — it’s the combination of thermal performance with weather tightness.
The foamed-EPDM central gasket is the technical differentiator. Standard solid EPDM seals are used across the residential PVC category; the foamed version uses a closed-cell foam construction that compresses more evenly across the full perimeter of the sash. The result on a real building:
- Better air infiltration ratings under wind pressure
- Better water tightness under driving rain
- Better thermal performance at the seal interface
- Longer compression-set life over 20+ years of operation
If the project is coastal, exposed, or in a microclimate where wind-driven rain is a known issue, IGLO ENERGY outperforms the rest of the IGLO 7-chamber line at the sealing interface.
Standard equipment
- Double-chamber triple-pane IGU at Ug = 0.5 W/(m²K)
- Swisspacer Ultimate warm-edge spacer (free option)
- 4 anti-burglary engagement points
- Microventilation
- Aluminum window handle
- Sash position blocker
- Perimeter and glazing EPDM seals plus foamed-EPDM central gasket in black or grey
- Hardware groove sealing
- Sub-sill drip cap profile
Performance specs
| Thermal transmittance (Uw) | 0.71 W/(m²K) |
|---|---|
| Profile class (EN 12608) | A |
| Frame chambers | 7 |
| Build depth | 82 mm |
| EPDM seals | 3 (perimeter + foamed central) |
| Glazing (standard) | Double-chamber triple-pane, Ug = 0.5 W/(m²K) |
| Spacer (standard) | Swisspacer Ultimate warm-edge (free upgrade) |
| Acoustic insulation | 37 to 46 dB depending on glazing |
| Anti-pry engagement points | 4 (varies with sash size and hardware) |
Full technical detail
IGLO ENERGY is a 7-chamber Class A PVC tilt-turn window system built on the 82 mm depth profile platform shared with IGLO EDGE and IGLO ENERGY CLASSIC. The system uses an extruded PVC profile manufactured exclusively from primary material (no recycled PVC core) with embedded steel reinforcement for structural performance.
The defining technical feature is the foamed-EPDM central gasket — the first window system in the world to use a foamed (closed-cell) EPDM central seal between the interior and exterior solid EPDM perimeter gaskets. The foamed construction provides more even compression distribution across the full sash perimeter than a solid EPDM gasket of the same nominal thickness, improving air infiltration and water tightness under wind pressure. The compression-set characteristic also extends the functional sealing life beyond typical solid-EPDM service life.
Thermal performance of Uw = 0.71 W/(m²K) is achieved through the 7-chamber frame geometry, the standard double-chamber triple-pane IGU at Ug = 0.5 W/(m²K), the Swisspacer Ultimate warm-edge spacer (free upgrade), and the foamed-EPDM central gasket system. The Uw is slightly higher (less favorable) than IGLO EDGE at 0.66, but air infiltration and water tightness ratings exceed the other 7-chamber siblings.
Acoustic insulation ranges from 37 dB to 46 dB depending on the glazing package. Standard hardware is MACO MULTI-MATIC KS with Silber-Look anti-corrosion coating, 4 anti-burglary engagement points (count varies with sash size and hardware), and sash position blocker. Aluminum window handle standard, with Smart Home compatible electronic handle upgrades available.
Factory color options are white and brown as standard PVC. Anthracite and modern colors are handled through the Renolit foil program (full wood-grain finishes and custom RAL matching); interior and exterior faces can be specified in different colors. Operation types include tilt-turn, fixed, tilt-only, side-hung, and top-hung, plus custom geometric shapes (arched, trapezoid, circular).
Application range is residential new build and replacement, multi-family, and light commercial across the Northeast US climate envelope — particularly coastal, hilltop, and exposed-elevation installations where wind-driven rain and air infiltration are primary concerns. NFRC-equivalent thermal data, wind load ratings, and water tightness ratings are available for code compliance submission and structural review.
Colour range
Pick a foil finish — the preview updates live.
Selected finish:
Where it fits
Spec it for
- Coastal residential from the Jersey Shore through Long Island where wind-driven rain is a known issue
- Exposed elevations on hilltop or unobstructed sites
- High-performance residential where the seal life is part of the spec
- Replacement work on older homes with existing air infiltration problems
- Multi-family premium tier where weather tightness is a marketing point
Don't spec it for
- Projects where Uw < 0.7 is hard-required (use IGLO EDGE)
- Outward-opening applications (use IGLO EXT or IGLO PREMIER)
- Anthracite factory-standard color requirements (use IGLO EDGE or IGLO ENERGY CLASSIC)
Within the line
IGLO ENERGY sits in the upper-thermal tier with the unique foamed-EPDM seal technology. Same 82 mm depth as the rest of the 7-chamber family.
| Model | Uw / Ud | Chambers | Depth | Notes |
|---|---|---|---|---|
| IGLO EDGE | 0.66 | 7 | 82 mm | 3 seals · white, brown, anthracite |
| IGLO ENERGY This model | 0.71 | 7 | 82 mm | 3 (foamed central) · white, brown |
| IGLO ENERGY CLASSIC | 0.73 | 7 | 82 mm | 3 seals · +anthracite |
| IGLO ENERGY ALUCOVER | 0.76 | 7 | 93 mm | RAL matte aluminum exterior |
| IGLO 5 | 0.89 | 5 | 70 mm | 2 seals · white, brown |
Lead time and process
Quote in 5 business days. Lead times typically run 10 to 14 weeks from order confirmation. Specific lead time confirmed in writing before purchase order.
Inspirations

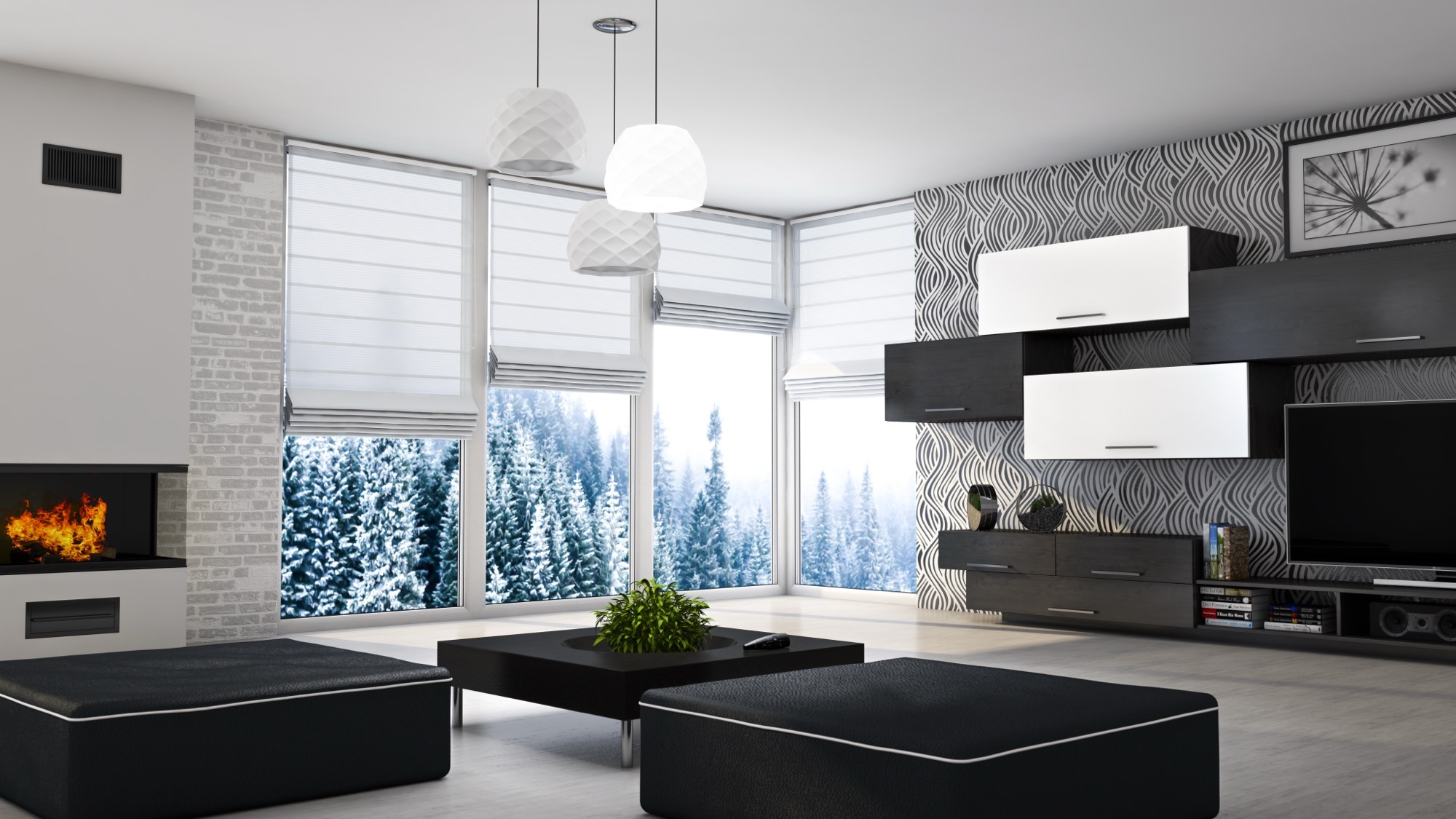

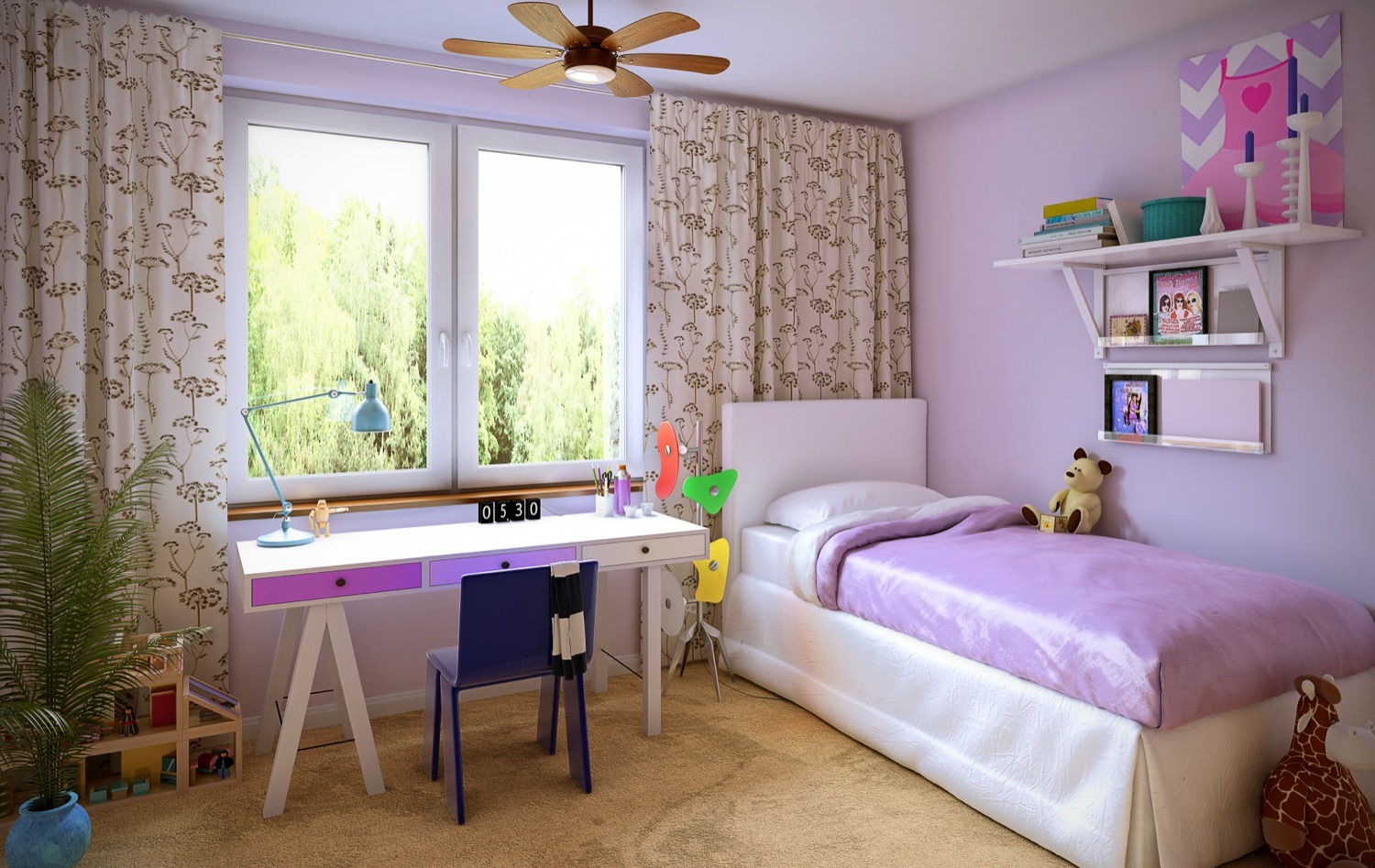

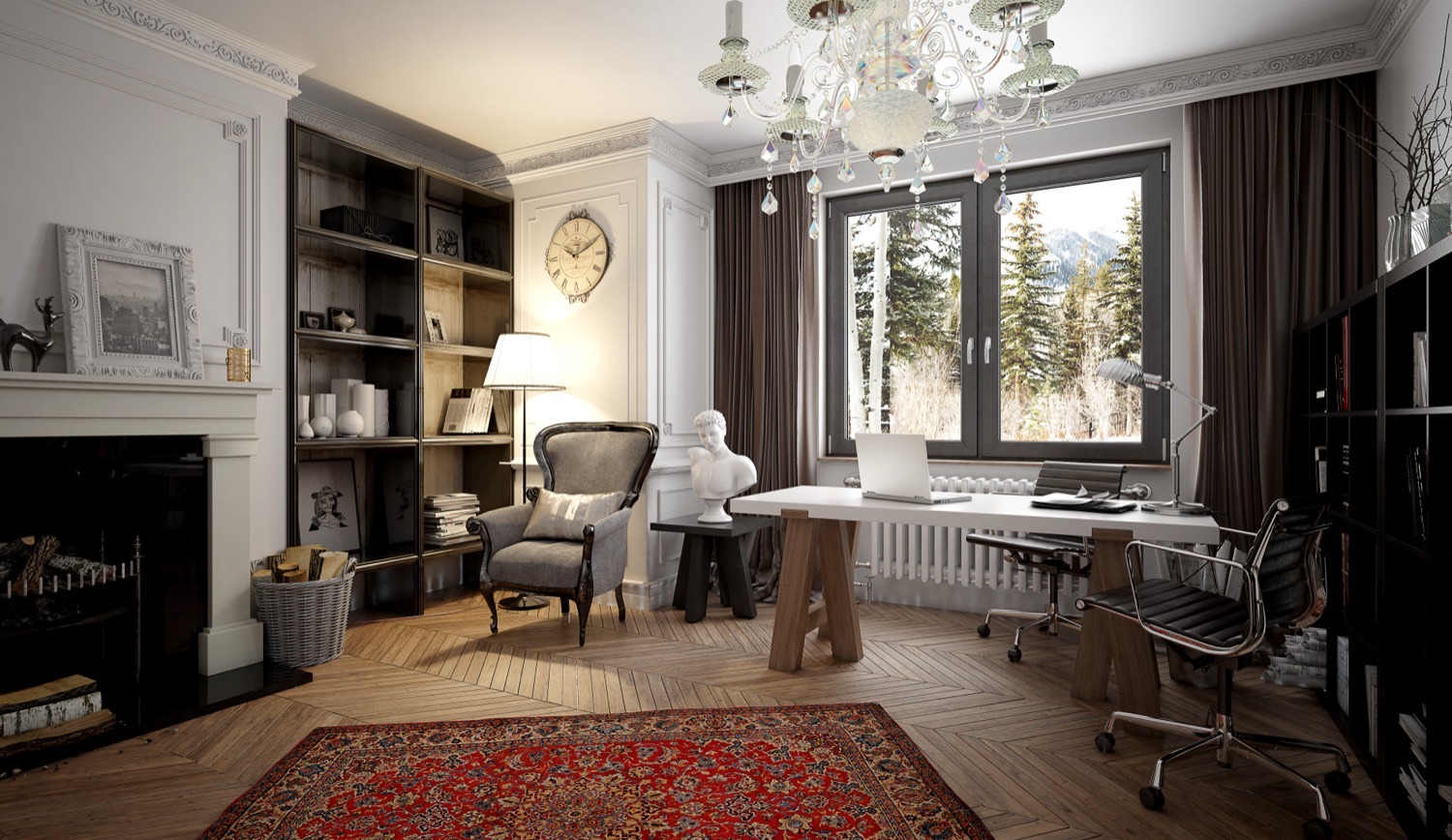

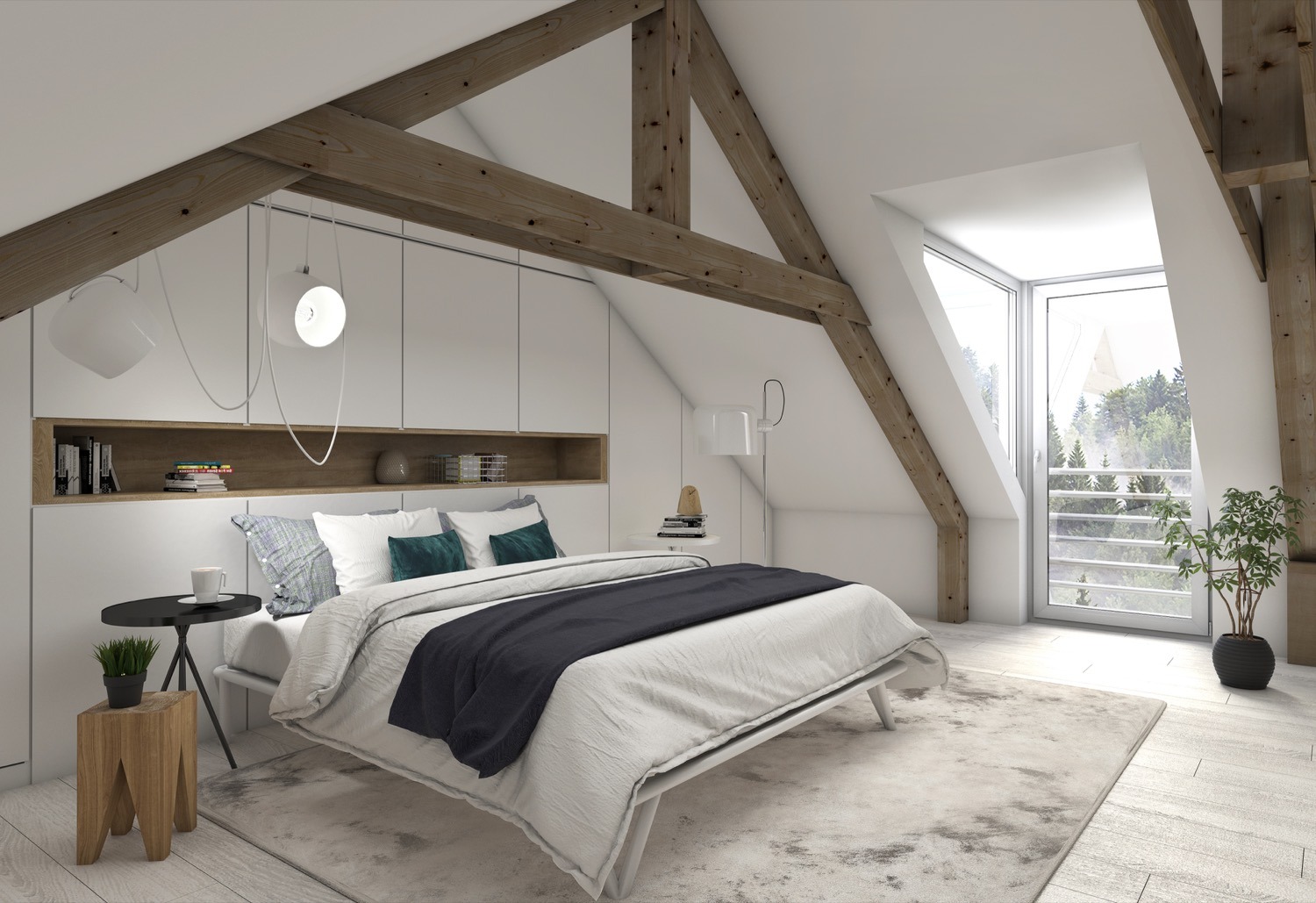

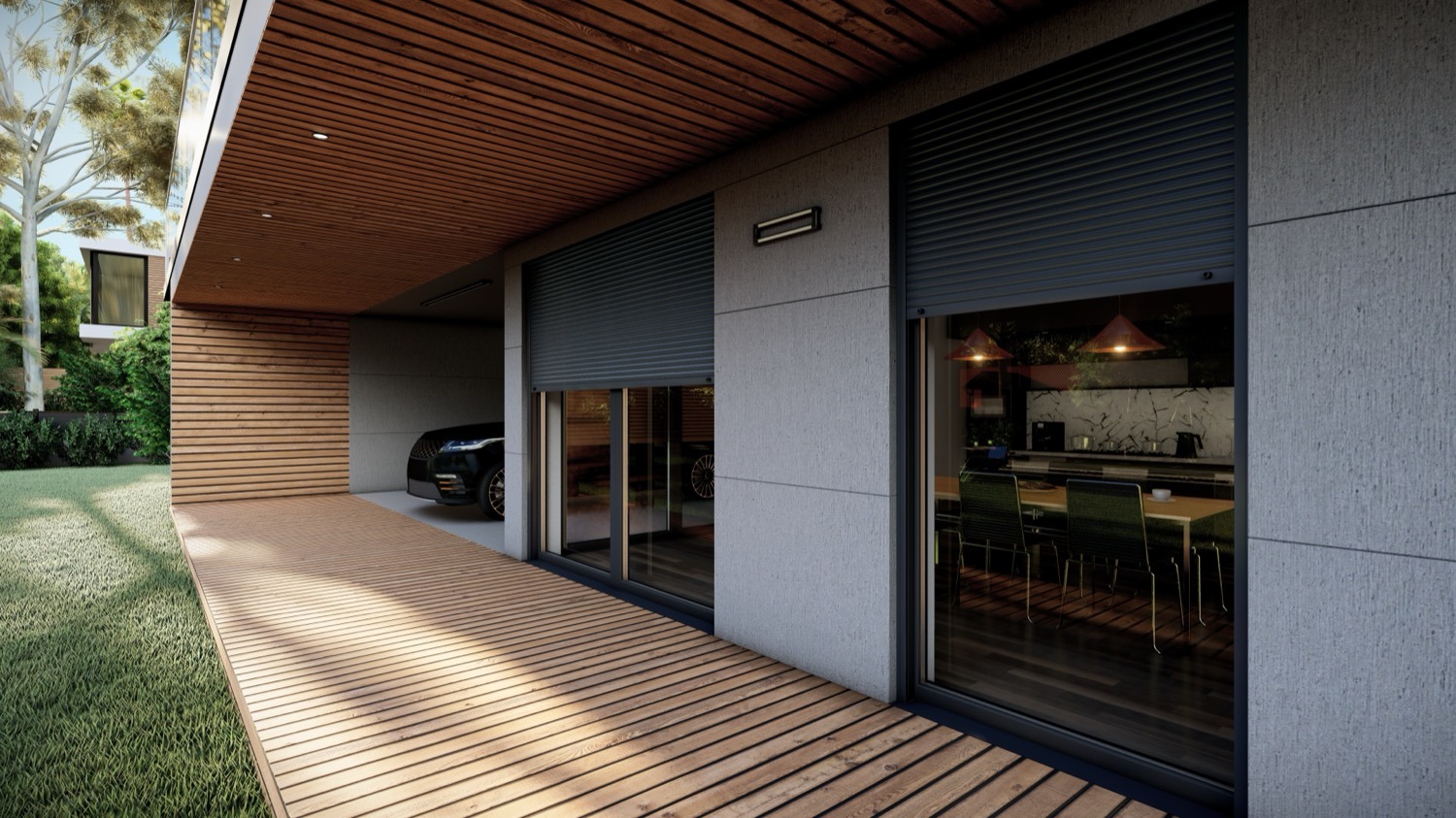

IGLO ENERGY windows in real homes across the Northeast.
